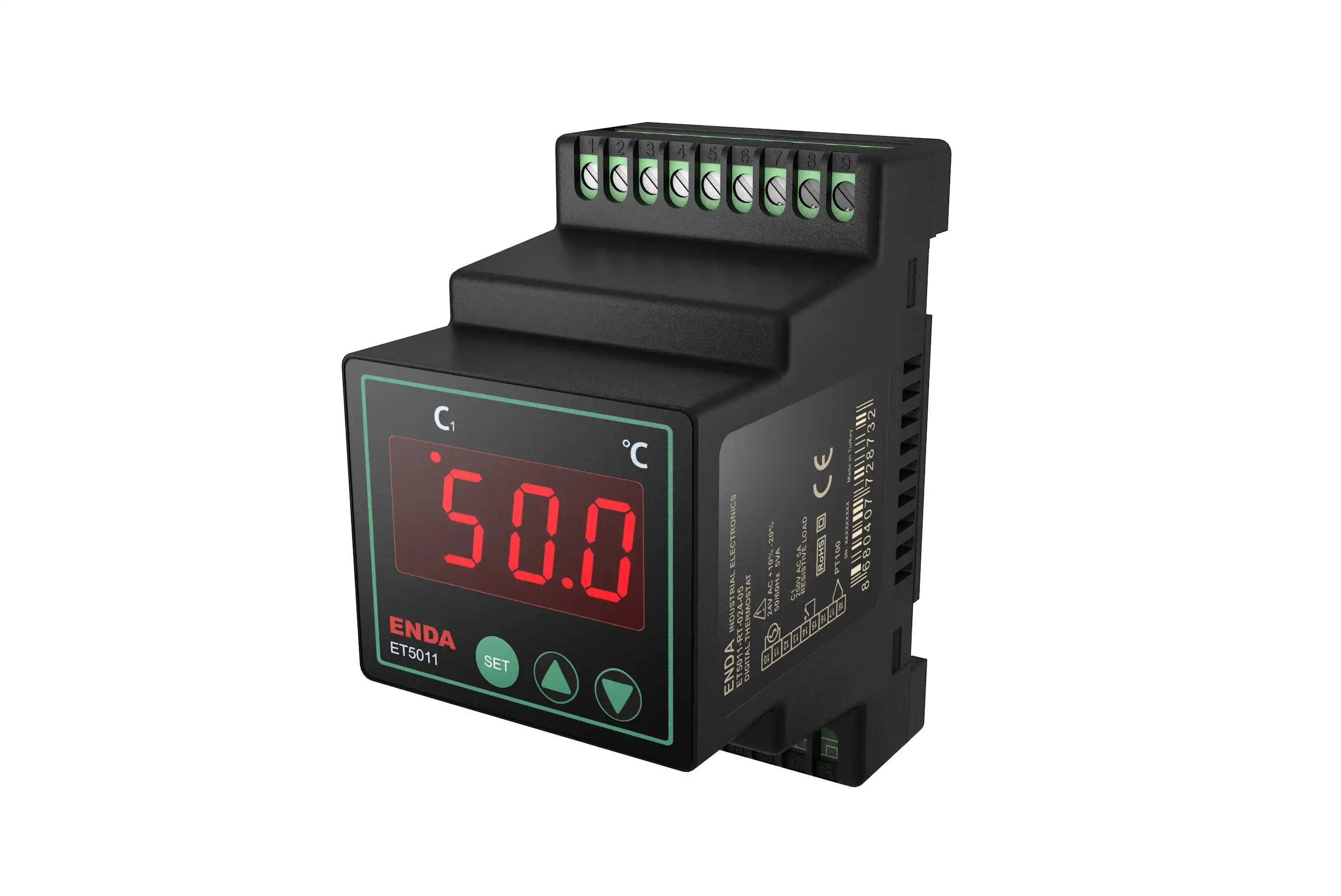

ET5011
54x94 mm, PT 100 Input, SSR and Relay Output, PID Temperature Controller
PT100 input
PID control function with accurate self-tuning
Soft-Start function
Offset feature for input
C1 relay out for temperature control
Selectable heating/cooling control
In case of sensor failure, manual control can be selected
CE marked according to European Norms
Manuals
Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC
Relative Humidity
80% relative humidity for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 Front panel: IP62, Rear panel: IP20
Height
Max. 2000m
Output
C1 Output
5A model: 250V AC, 5A (for resistive load), NO control output
8A model: 250V AC, 8A (for resistive load), NO+NC control output
16A model: 250V AC, 16A (for resistive load), NO control output
8A model: 250V AC, 8A (for resistive load), NO+NC control output
16A model: 250V AC, 16A (for resistive load), NO control output
Life Expectancy
5A model: Mechanical 5.000.000 operations (under no load), Electrical 100.000 operations (5A at 250V AC, resistive load)
8A model: Mechanical 30.000.000 operations (under no load), Electrical 300.000 operations (8A at 250V AC, resistive load)
16A model: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (16A at 250V AC, resistive load)
8A model: Mechanical 30.000.000 operations (under no load), Electrical 300.000 operations (8A at 250V AC, resistive load)
16A model: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (16A at 250V AC, resistive load)
Housing
Mounting Method
TH35 rail mounting
Dimensions
W54xH94xD68 mm
Weight
Approx. 190g (after packaging)
Enclosure Material
Self extinguishing plastics
Electrical Characteristics
Supply
230V AC +%10 -%20 50/60Hz or 10-30V DC / 8-24V AC
Power Consumption
5VA
External Connections
Screw-terminals
Scale
Pt-100 resistance thermometer -200...600 °C
Pt-100 resistance thermometer -99.9...300.0 °C
Pt-100 resistance thermometer -99.9...300.0 °C
Accuracy
±0.5% (of full scale) ±1 digit
Line Resistance
Max. 100ohm
Control
Control Type
Single-setpoint control
Control Algorithm
On-Off, P, PI, PD, PID (selectable)
A/D Converter
12 bit
Sampling Time
100ms
Proportional Band
Adjustable between 0.0% and 100.0%. If Pb=0%, On-Off control is selected
Control Period
Adjustable between 1 and 250s
Hysteresis
Adjustable between 1 and 50 °C/F
Output Power
The ratio of power at a set point can be adjusted between 0% and 100%
Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC
Relative Humidity
80% relative humidity for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 Front panel: IP62, Rear panel: IP20
Height
Max. 2000m
Electrical Characteristics
Supply
230V AC +%10 -%20 50/60Hz or 10-30V DC / 8-24V AC
Power Consumption
5VA
External Connections
Screw-terminals
Scale
Pt-100 resistance thermometer -200...600 °C
Pt-100 resistance thermometer -99.9...300.0 °C
Pt-100 resistance thermometer -99.9...300.0 °C
Accuracy
±0.5% (of full scale) ±1 digit
Line Resistance
Max. 100ohm
Output
C1 Output
5A model: 250V AC, 5A (for resistive load), NO control output
8A model: 250V AC, 8A (for resistive load), NO+NC control output
16A model: 250V AC, 16A (for resistive load), NO control output
8A model: 250V AC, 8A (for resistive load), NO+NC control output
16A model: 250V AC, 16A (for resistive load), NO control output
Life Expectancy
5A model: Mechanical 5.000.000 operations (under no load), Electrical 100.000 operations (5A at 250V AC, resistive load)
8A model: Mechanical 30.000.000 operations (under no load), Electrical 300.000 operations (8A at 250V AC, resistive load)
16A model: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (16A at 250V AC, resistive load)
8A model: Mechanical 30.000.000 operations (under no load), Electrical 300.000 operations (8A at 250V AC, resistive load)
16A model: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (16A at 250V AC, resistive load)
Control
Control Type
Single-setpoint control
Control Algorithm
On-Off, P, PI, PD, PID (selectable)
A/D Converter
12 bit
Sampling Time
100ms
Proportional Band
Adjustable between 0.0% and 100.0%. If Pb=0%, On-Off control is selected
Control Period
Adjustable between 1 and 250s
Hysteresis
Adjustable between 1 and 50 °C/F
Output Power
The ratio of power at a set point can be adjusted between 0% and 100%
Housing
Mounting Method
TH35 rail mounting
Dimensions
W54xH94xD68 mm
Weight
Approx. 190g (after packaging)
Enclosure Material
Self extinguishing plastics
