ET2001

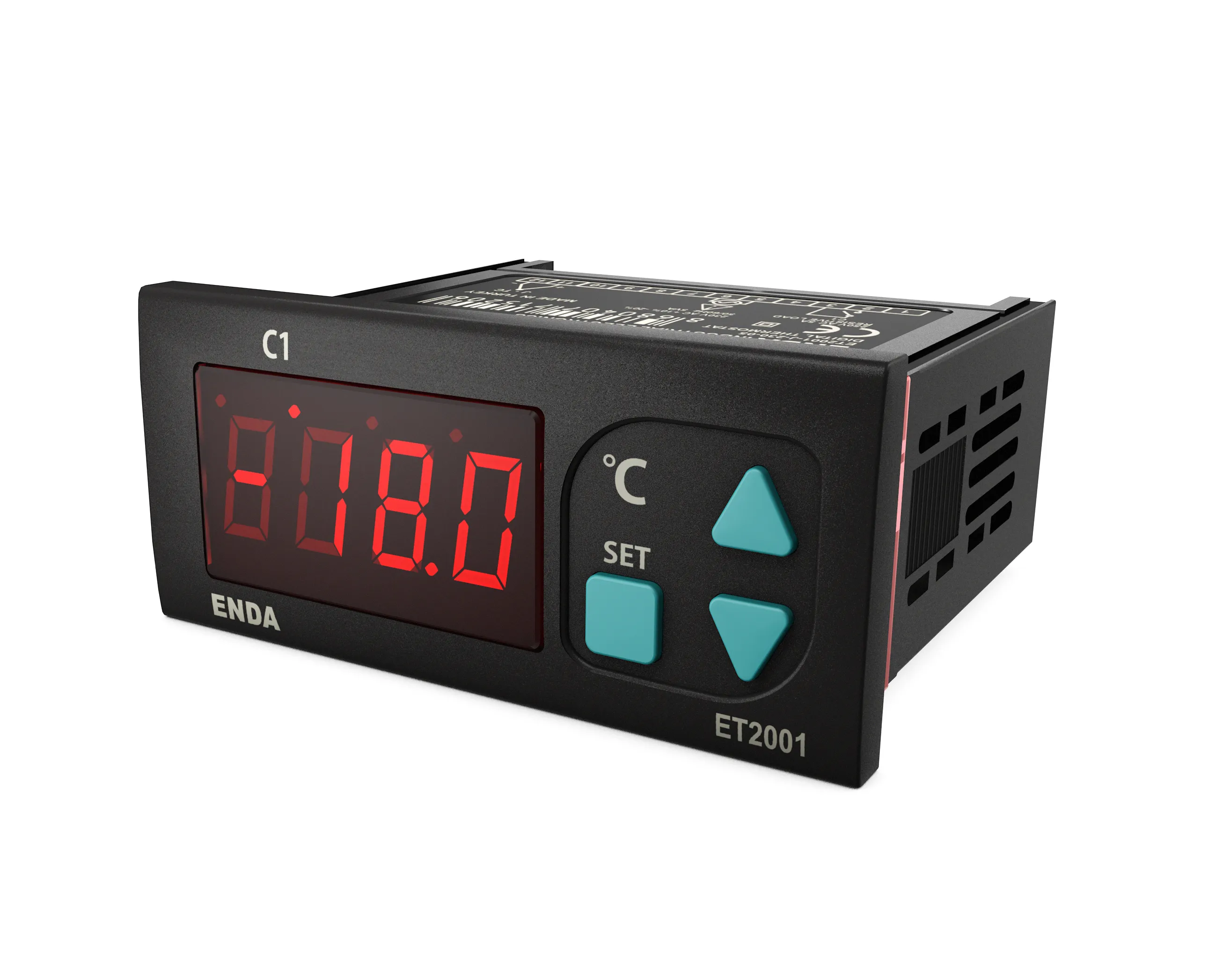

77x35 mm, J Jipi Thermocouple Input, 1 Relay Output, On-Off Temperature Controller
J type thermocouple input
Offset feature for input
C1 relay out for temperature control
When C1 output configuration is selected for cooling, compressor delay time can be entered
Selectable heating/cooling control
In case of sensor failure, relay state can be configured as On or Off
CE marked according to European Norms
Manuals
Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC
Relative Humidity
80% relative humidity for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 Front panel: IP62, Rear panel: IP20
Height
Max. 2000m
Output
C1 Output
8A model: 250V AC, 8A (for resistive load), NO+NC control output
Life Expectancy
8A model: Mechanical 30.000.000 operations (under no load), Electrical 300.000 operations (8A at 250V AC, resistive load)
Housing
Mounting Method
Panel mounting
Dimensions
W77xH35xD61 mm
Weight
Approx. 215g (after packaging)
Enclosure Material
Self extinguishing plastics
Electrical Characteristics
Supply
230V AC +%10 -%50 50/60Hz veya 10-30V DC / 8-24V AC
Power Consumption
Power connector; 2.5mm² screw-terminal, Signal connector, 1,5mm² screw-terminal conenction
External Connections
Screw-terminals
Scale
Fe-Const (J) thermocouple -30...400 °C, NTC probe -25.0...110.0 °C
Accuracy
± 1% (of full scale) ± 1 digit
Line Resistance
Max. 100ohm
Indicator
4 digits, 12.5mm, 7 segment red LED
Control
Control Type
Single-setpoint control
Control Algorithm
On-Off
A/D converter
12 bit
Sampling Time
100ms
Hysteresis
Adjustable between 0.1 and 5.0 °C
Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC
Relative Humidity
80% relative humidity for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 Front panel: IP62, Rear panel: IP20
Height
Max. 2000m
Electrical Characteristics
Supply
230V AC +%10 -%50 50/60Hz veya 10-30V DC / 8-24V AC
Power Consumption
Power connector; 2.5mm² screw-terminal, Signal connector, 1,5mm² screw-terminal conenction
External Connections
Screw-terminals
Scale
Fe-Const (J) thermocouple -30...400 °C, NTC probe -25.0...110.0 °C
Accuracy
± 1% (of full scale) ± 1 digit
Line Resistance
Max. 100ohm
Indicator
4 digits, 12.5mm, 7 segment red LED
Output
C1 Output
8A model: 250V AC, 8A (for resistive load), NO+NC control output
Life Expectancy
8A model: Mechanical 30.000.000 operations (under no load), Electrical 300.000 operations (8A at 250V AC, resistive load)
Control
Control Type
Single-setpoint control
Control Algorithm
On-Off
A/D converter
12 bit
Sampling Time
100ms
Hysteresis
Adjustable between 0.1 and 5.0 °C
Housing
Mounting Method
Panel mounting
Dimensions
W77xH35xD61 mm
Weight
Approx. 215g (after packaging)
Enclosure Material
Self extinguishing plastics
