EOC9328A

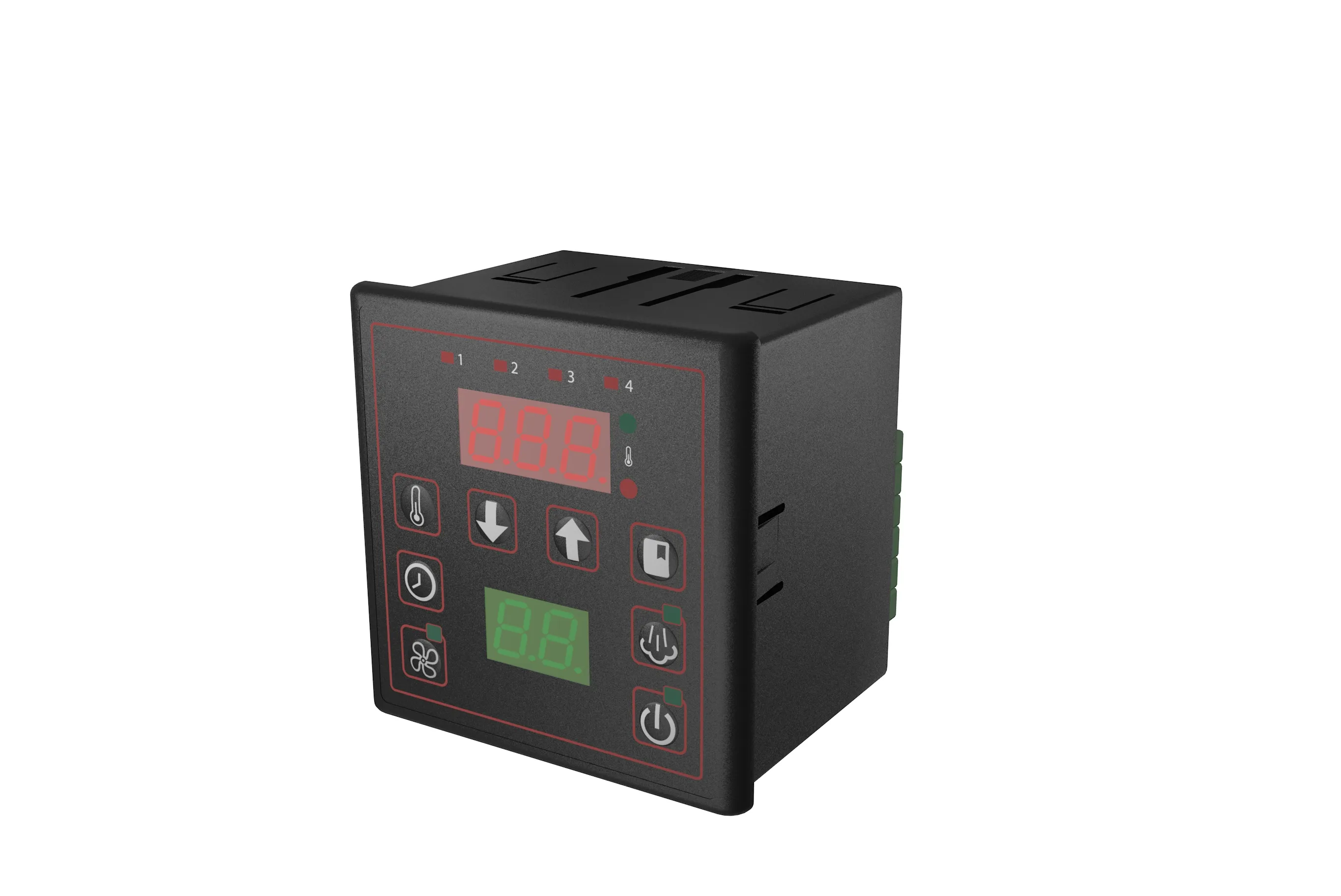

96x96 mm, J Type Thermocouple Input, 4 Recipes, 7 Relay Outputs Oven Controller
Digital display for temperature (3 digit) and timer (2 digit)
On-Off control
1 Fe-Const thermocouple input
7 relay outputs
External buzzer output
External phase-door Input
Programmable 4 receipts and manual mode
CE marked according to European Norms
Manuals
Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC
Relative Humidity
80% relative humidity for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 Front panel: IP65, Rear panel: IP20
Height
Max. 2000m
Output
Circulation Output
Relay: 250V AC, 5A (for resistive load)
Heating R1 Output
Relay: 250V AC, 5A (for resistive load)
Steam Ventilation Output
Relay: 250V AC, 5A (for resistive load)
Lighting Output
Relay: 250V AC, 5A (for resistive load)
Solenoid (Steam) Valve Output
Relay: 250V AC, 5A (for resistive load)
Reduction Gear Output (left)
Relay: 250V AC, 5A (for resistive load)
Reduction Gear Output (right)
Relay: 250V AC, 5A (for resistive load)
Life Expectancy
Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (10A at 250V AC, resistive load)
Housing
Mounting Method
Panel mounting
Dimensions
W96xH96xD81 mm
Weight
Approx. 400g (after packaging)
Enclosure Material
Self extinguishing plastics
Electrical Characteristics
Supply
230V AC +10% -20% 50/60Hz
Power Consumption
2.6VA
External Connections
Plug-in terminals
Scale
Fe-Const (J) thermocouple -30...600 °C
Accuracy
±0.5% (of full scale)
Line Resistance
Max. 100ohm
Control
Control Type
Single set-point
Control Algorithm
On-Off
A/D Converter
12 bit
Sampling Time
100ms
Hysteresis
Adjustable between 1 and 20 °C/F
Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC
Relative Humidity
80% relative humidity for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 Front panel: IP65, Rear panel: IP20
Height
Max. 2000m
Electrical Characteristics
Supply
230V AC +10% -20% 50/60Hz
Power Consumption
2.6VA
External Connections
Plug-in terminals
Scale
Fe-Const (J) thermocouple -30...600 °C
Accuracy
±0.5% (of full scale)
Line Resistance
Max. 100ohm
Output
Circulation Output
Relay: 250V AC, 5A (for resistive load)
Heating R1 Output
Relay: 250V AC, 5A (for resistive load)
Steam Ventilation Output
Relay: 250V AC, 5A (for resistive load)
Lighting Output
Relay: 250V AC, 5A (for resistive load)
Solenoid (Steam) Valve Output
Relay: 250V AC, 5A (for resistive load)
Reduction Gear Output (left)
Relay: 250V AC, 5A (for resistive load)
Reduction Gear Output (right)
Relay: 250V AC, 5A (for resistive load)
Life Expectancy
Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (10A at 250V AC, resistive load)
Control
Control Type
Single set-point
Control Algorithm
On-Off
A/D Converter
12 bit
Sampling Time
100ms
Hysteresis
Adjustable between 1 and 20 °C/F
Housing
Mounting Method
Panel mounting
Dimensions
W96xH96xD81 mm
Weight
Approx. 400g (after packaging)
Enclosure Material
Self extinguishing plastics
