ATC9311

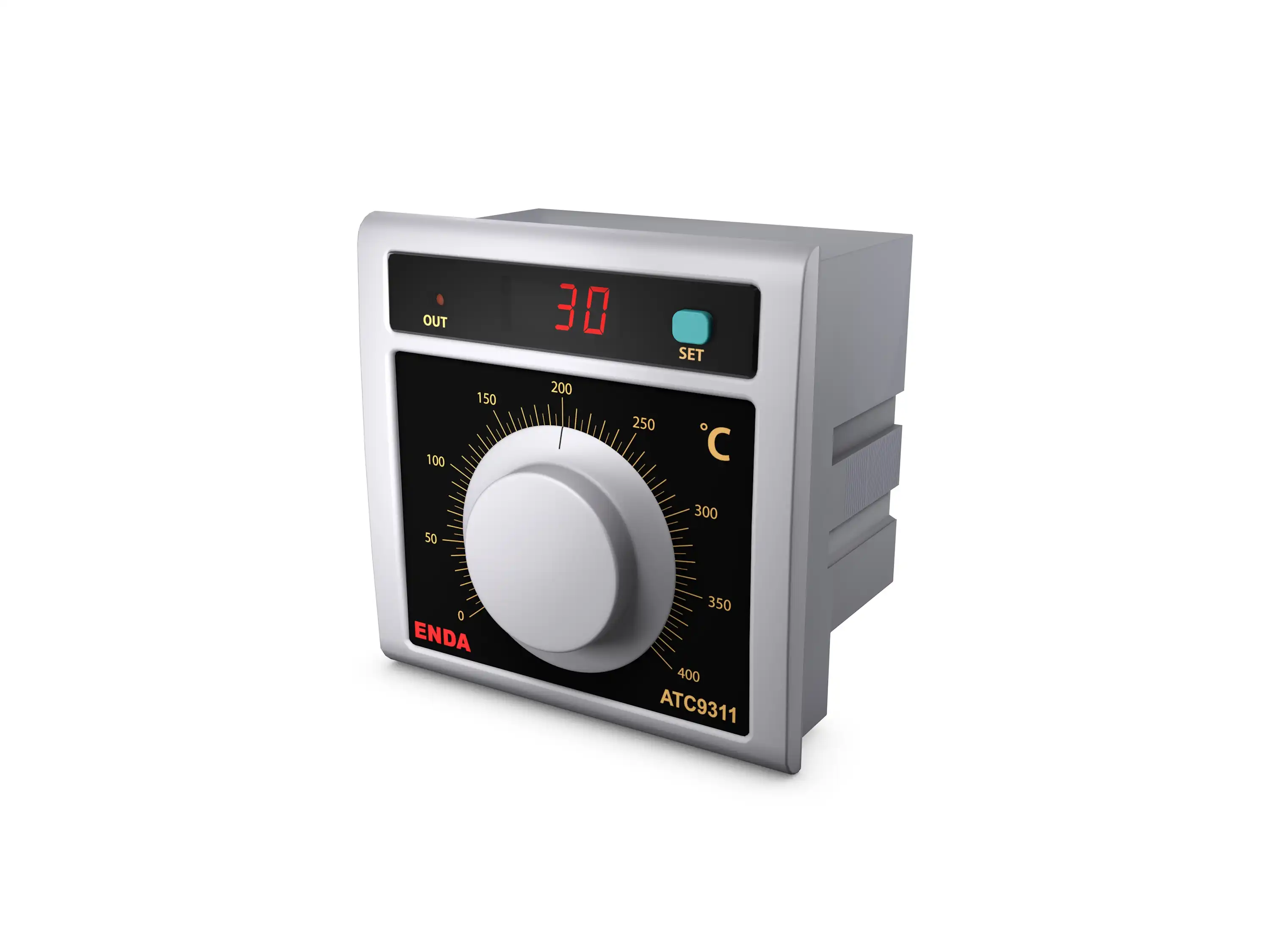

96x96 mm, Fe-Const or NiCr-Ni Thermocouple Input, Analog Pot. Adjustable, Digital Display Temperature Controller

Compare
ATC9311 Enda Product
Compare
  • Digital display for measured temperature and set value

  • Selectable On-Off or time proportional control

  • Fe-Const thermocouple or NiCr-Ni thermocouple input

  • In the case of sensor failure, control output will be disable

  • Easy setting procedure

  • CE marked according to European Norms

Manuals

Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC
Relative Humidity
80% relative humidity for temperatures up to 31°C, decreasing linearly to 50% at 40°C
Protection Degree
According to EN 60529 Front panel: IP60, Rear panel: IP20
Height
Max. 2000m
Outputs
Control Output
Relay: 250V AC, 8A (for resistive load), NO+NC or 12V DC 20mA logic output
Life Expectancy
Mechanical 30.000.000 operations (under no load), Electrical 300.000 operations (3A at 250V AC, resistive load)
Housing
Mounting Method
Panel mounting
Dimensions
W96xH96xD50 mm
Weight
Approx. 250g (after packaging)
Enclosure Material
Self extinguishing plastics
Electrical Characteristics
Supply
230V AC +%10 -%20 or 10-30V DC/ 8-24V AC
Power Consumption
5VA
External Connections
Plug-in terminals
Scale
Fe-Const (J) thermocouple 0...400 °C
NiCr-Ni (K) thermocouple 0...320 °C

Sensitivity
1 ºC
Accuracy
For analog scale ±4% (of full scale)", for display scale ±0,5% (of full scale) or ±1 digit
Control
Control Type
Single-setpoint control
Control Algorithm
On-Off (Xp=0) or time proportional control
A/D converter
10 bit
Proportional Band
2% (adjustable from the device)
Hysteresis
4 ºC (for On-Off control)
Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC
Relative Humidity
80% relative humidity for temperatures up to 31°C, decreasing linearly to 50% at 40°C
Protection Degree
According to EN 60529 Front panel: IP60, Rear panel: IP20
Height
Max. 2000m
Electrical Characteristics
Supply
230V AC +%10 -%20 or 10-30V DC/ 8-24V AC
Power Consumption
5VA
External Connections
Plug-in terminals
Scale
Fe-Const (J) thermocouple 0...400 °C
NiCr-Ni (K) thermocouple 0...320 °C

Sensitivity
1 ºC
Accuracy
For analog scale ±4% (of full scale)", for display scale ±0,5% (of full scale) or ±1 digit
Outputs
Control Output
Relay: 250V AC, 8A (for resistive load), NO+NC or 12V DC 20mA logic output
Life Expectancy
Mechanical 30.000.000 operations (under no load), Electrical 300.000 operations (3A at 250V AC, resistive load)
Control
Control Type
Single-setpoint control
Control Algorithm
On-Off (Xp=0) or time proportional control
A/D converter
10 bit
Proportional Band
2% (adjustable from the device)
Hysteresis
4 ºC (for On-Off control)
Housing
Mounting Method
Panel mounting
Dimensions
W96xH96xD50 mm
Weight
Approx. 250g (after packaging)
Enclosure Material
Self extinguishing plastics
