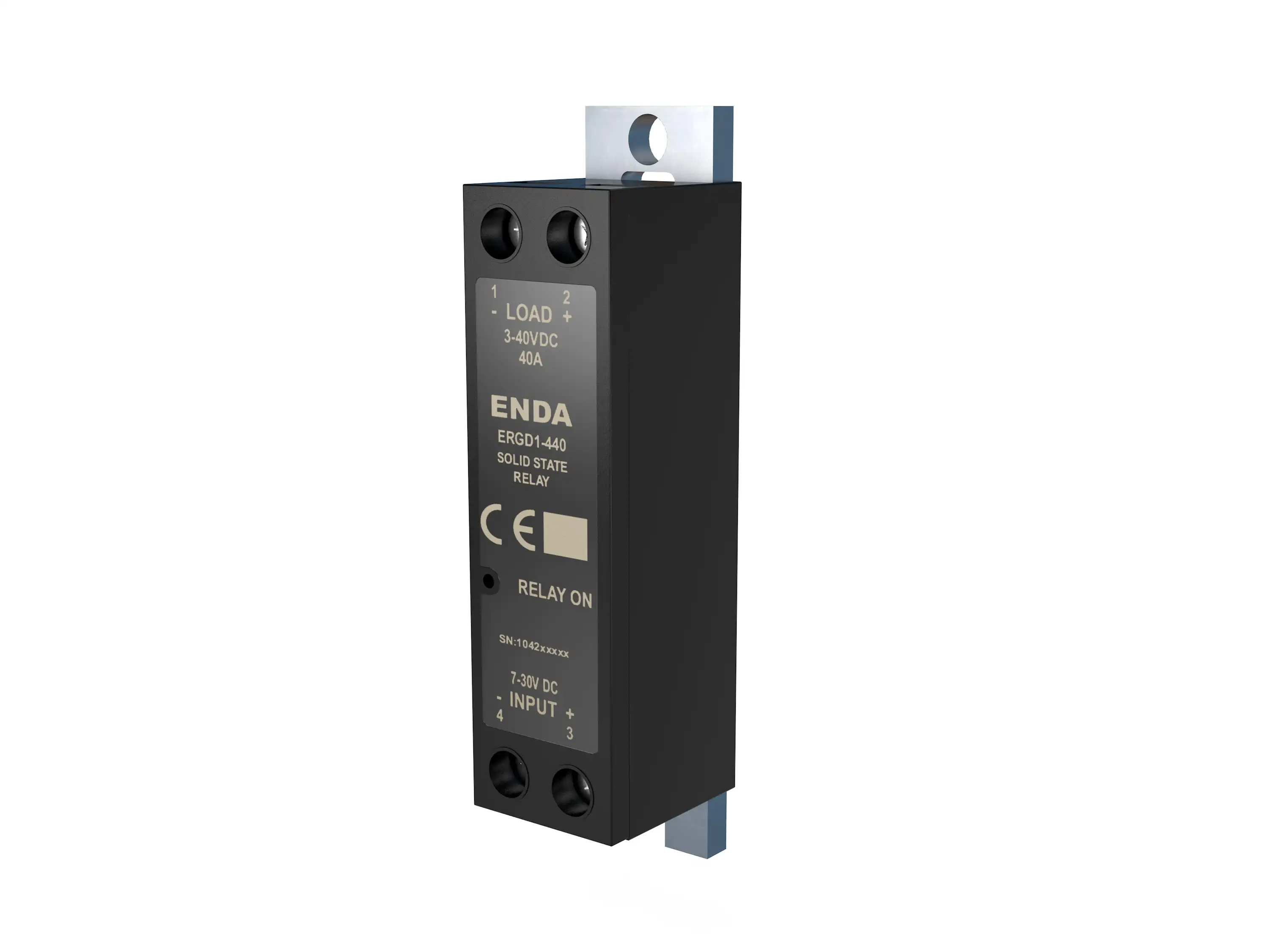

ESGD1
One Phase, 7-30V DC Input Voltage, 3-40V DC Load Voltage, Narrow Panel,
40A load current
3-40V DC load voltage
7-30V DC input voltage
Applicable for three phase loads
Built-in varistor protection
CE marked according to European Norms
Manuals
Environmental Conditions
Ambient/Storage Temperature
-25...60 ºC / -30...100 ºC
Relative Humidity
90% relative humidity for temperatures up to 20 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 IP20
Height
Max. 1000m
Housing
Mounting Method
M4 screws
Dimensions
W24xH101xD29 mm
Weight
95g (after packaging)
Enclosure Material
Self extinguishing plastics
Electrical Characteristics
Input Voltage
7-30V DC
Pick-up Voltage
>7V DC
Drop-out Voltage
˂6V DC
Input Current
˂20mA DC
Turn-on Time
5ms
Turn-off Time
5ms
LED Indicator
If the input voltage ˃6V DC then LED lit
Load Current(A DC)
EPGD1-440Z: 40
Load Voltage (V DC)
3-40
Frequency (Hz)
100
Environmental Conditions
Ambient/Storage Temperature
-25...60 ºC / -30...100 ºC
Relative Humidity
90% relative humidity for temperatures up to 20 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 IP20
Height
Max. 1000m
Electrical Characteristics
Input Voltage
7-30V DC
Pick-up Voltage
>7V DC
Drop-out Voltage
˂6V DC
Input Current
˂20mA DC
Turn-on Time
5ms
Turn-off Time
5ms
LED Indicator
If the input voltage ˃6V DC then LED lit
Load Current(A DC)
EPGD1-440Z: 40
Load Voltage (V DC)
3-40
Frequency (Hz)
100
Housing
Mounting Method
M4 screws
Dimensions
W24xH101xD29 mm
Weight
95g (after packaging)
Enclosure Material
Self extinguishing plastics
