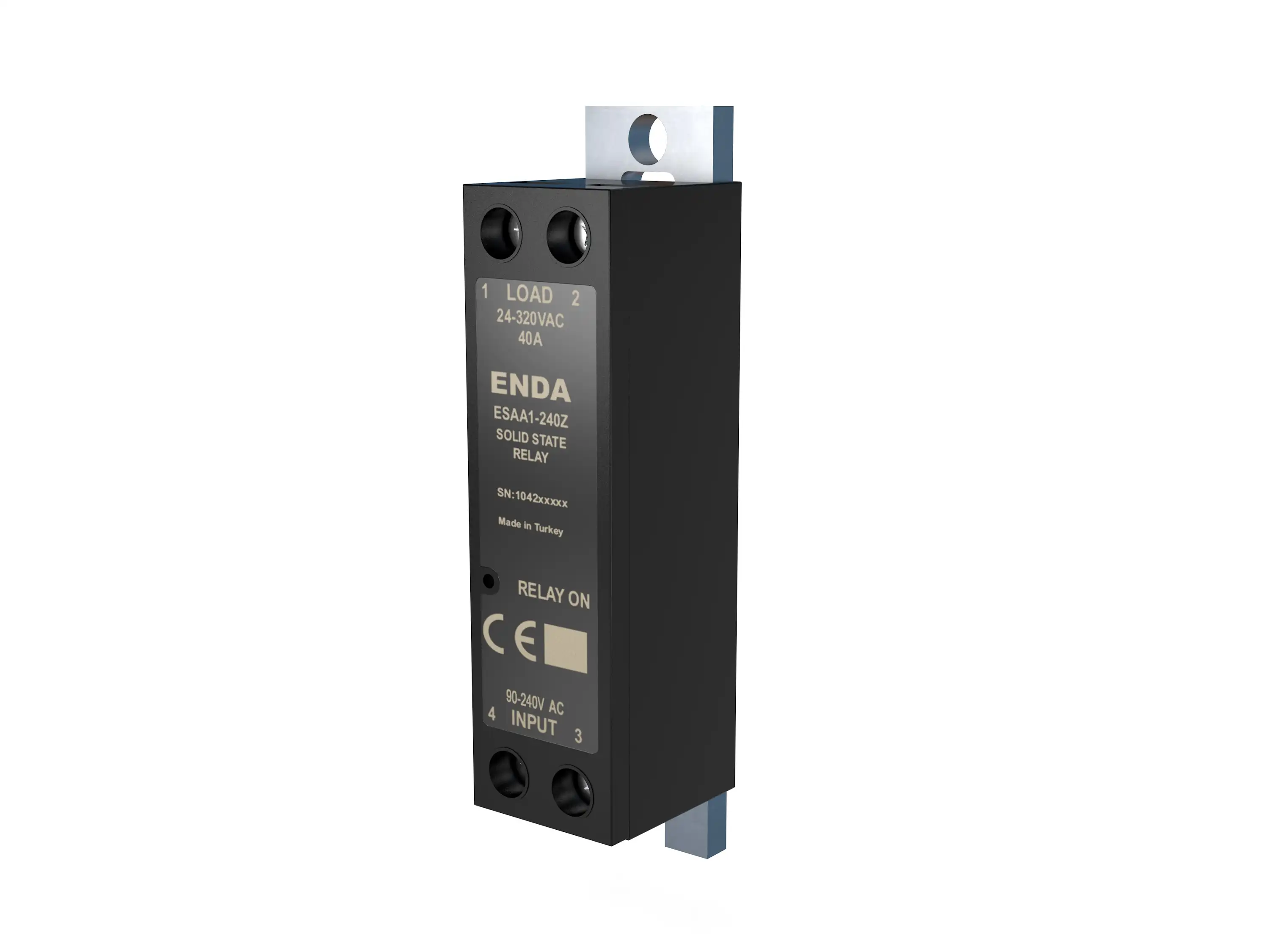

ESAA1
One Phase, 90-240V AC Input Voltage, 24-320V AC or 50-480V AC Load Voltage, Zero/random-cross,
12A-25A-40A load current
320V AC or 480V AC load voltage
90-240V AC input voltage
LED status indicator for input voltage
Zero/random-cross switching
Applicable for three phase loads
Built-in varistor protection
CE marked according to European Norms
Manuals
Environmental Conditions
Ambient/Storage Temperature
-25...60 ºC / -30...100 ºC
Relative Humidity
90% relative humidity for temperatures up to 20 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 IP20
Height
Max. 1000m
Housing
Mounting Method
M4 screws
dimensions
W24xH101xD29 mm
Weight
ESAA1-2xx/4xxX 95g (after packaging)
Enclosure Material
Self extinguishing plastics
Electrical Characteristics
Input Voltage
90-240V AC
Pick-up Voltage
>75V AC
Drop-out Voltage
˂6V AC
Input Current
˂8mA AC
Turn-on Time
Max. 1 Period
Turn-off Time
Max. 2 Period
LED Indicator
If the input voltage ˃75V AC then LED lit
Load Current(Arms)
ESDA1-212X: 12
ESDA1-225X: 25
ESDA1-240X: 40
ESDA1-425X: 25
ESDA1-440X: 40
ESDA1-225X: 25
ESDA1-240X: 40
ESDA1-425X: 25
ESDA1-440X: 40
Load Voltage (Vrms)
ESDA1-212X, ESDA1-225X ve ESDA1-240X: 24-320
ESDA1-425X, ESDA1-440X: 50-480
ESDA1-425X, ESDA1-440X: 50-480
Frequency (Hz)
50-60
Environmental Conditions
Ambient/Storage Temperature
-25...60 ºC / -30...100 ºC
Relative Humidity
90% relative humidity for temperatures up to 20 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 IP20
Height
Max. 1000m
Electrical Characteristics
Input Voltage
90-240V AC
Pick-up Voltage
>75V AC
Drop-out Voltage
˂6V AC
Input Current
˂8mA AC
Turn-on Time
Max. 1 Period
Turn-off Time
Max. 2 Period
LED Indicator
If the input voltage ˃75V AC then LED lit
Load Current(Arms)
ESDA1-212X: 12
ESDA1-225X: 25
ESDA1-240X: 40
ESDA1-425X: 25
ESDA1-440X: 40
ESDA1-225X: 25
ESDA1-240X: 40
ESDA1-425X: 25
ESDA1-440X: 40
Load Voltage (Vrms)
ESDA1-212X, ESDA1-225X ve ESDA1-240X: 24-320
ESDA1-425X, ESDA1-440X: 50-480
ESDA1-425X, ESDA1-440X: 50-480
Frequency (Hz)
50-60
Housing
Mounting Method
M4 screws
dimensions
W24xH101xD29 mm
Weight
ESAA1-2xx/4xxX 95g (after packaging)
Enclosure Material
Self extinguishing plastics
