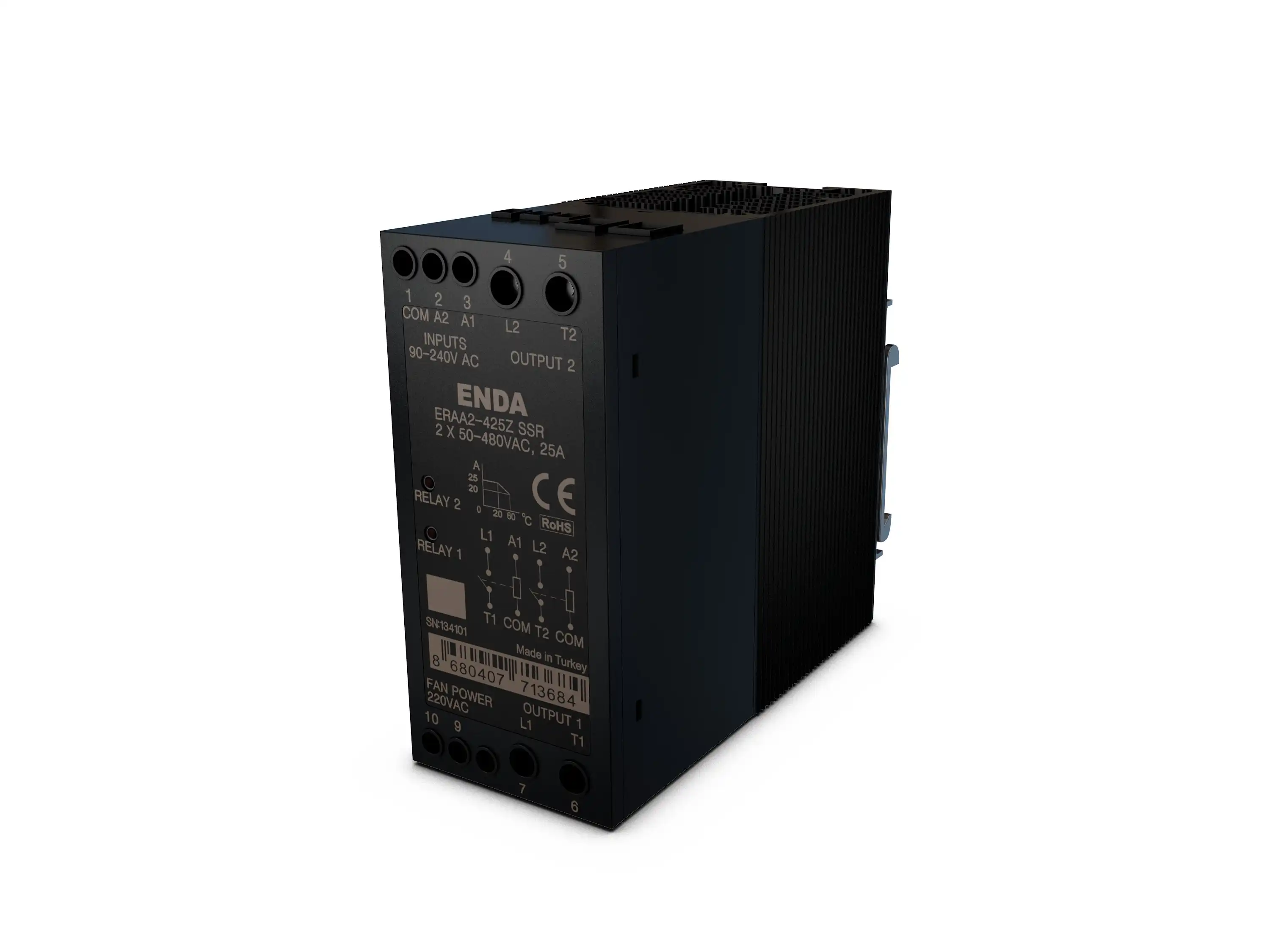

ERAA2
One Phase, 2 x Solid State Relay, 90-240V AC Input Voltage, 24-320V AC or 50-480V AC Load Voltage,
2x25 and 2x40A AC load current
280V AC or 480V AC load voltage
90-240V AC input voltage
LED status indicator for input voltage
Zero-cross switching
Applicable for three phase loads
Built-in varistor protection
CE marked according to European Norm
Manuals
Environmental Conditions
Ambient/Storage Temperature
-25...60 ºC / -30...100 ºC
Relative Humidity
90% relative humidity for temperatures up to 2°C, decreasing linearly to 50% at 4°C
Protection Degree
According to EN 60529 IP20
Height
Max. 1000m
Housing
Mounting Method
TH35 rail mounting
Dimensions
ERAA2-225Z and ERAA2-425Z: W46xH100xD117 mm
ERAA2-240Z-F and ERAA2-440Z-F: W46xH110xD117 mm
ERAA2-240Z-F and ERAA2-440Z-F: W46xH110xD117 mm
Weight
ERAA2-225Z and ERAA2-425Z: 475g (after packaging)
ERAA2-240Z-F and ERAA2-440Z-F: 500g (after packaging)
ERAA2-240Z-F and ERAA2-440Z-F: 500g (after packaging)
Enclosure Material
Self extinguishing plastics
Electrical Characteristics
Input Voltage
90-240V AC
Pick-up Voltage
>75V AC
Drop-out Voltage
˂6V AC
Input Current
˂8mA AC
Turn-on Time
Max. 1 Period
Turn-off Time
Max. 2 Period
LED Indicator
If the input voltage ˃75V AC then LED lits
Load Current (Arms)
ERAA2-225Z: 2x25
ERAA2-240Z-F: 2x40
ERAA2-425Z: 2x25
ERAA2-440Z-F: 2x40
ERAA2-240Z-F: 2x40
ERAA2-425Z: 2x25
ERAA2-440Z-F: 2x40
Load Voltage (Vrms)
ERAA2-225Z and ERAA2-240Z-F: 24-280
ERAA2-425Z and ERAA2-440Z-F 50-480
ERAA2-425Z and ERAA2-440Z-F 50-480
Frequency (Hz)
50-60
Environmental Conditions
Ambient/Storage Temperature
-25...60 ºC / -30...100 ºC
Relative Humidity
90% relative humidity for temperatures up to 2°C, decreasing linearly to 50% at 4°C
Protection Degree
According to EN 60529 IP20
Height
Max. 1000m
Electrical Characteristics
Input Voltage
90-240V AC
Pick-up Voltage
>75V AC
Drop-out Voltage
˂6V AC
Input Current
˂8mA AC
Turn-on Time
Max. 1 Period
Turn-off Time
Max. 2 Period
LED Indicator
If the input voltage ˃75V AC then LED lits
Load Current (Arms)
ERAA2-225Z: 2x25
ERAA2-240Z-F: 2x40
ERAA2-425Z: 2x25
ERAA2-440Z-F: 2x40
ERAA2-240Z-F: 2x40
ERAA2-425Z: 2x25
ERAA2-440Z-F: 2x40
Load Voltage (Vrms)
ERAA2-225Z and ERAA2-240Z-F: 24-280
ERAA2-425Z and ERAA2-440Z-F 50-480
ERAA2-425Z and ERAA2-440Z-F 50-480
Frequency (Hz)
50-60
Housing
Mounting Method
TH35 rail mounting
Dimensions
ERAA2-225Z and ERAA2-425Z: W46xH100xD117 mm
ERAA2-240Z-F and ERAA2-440Z-F: W46xH110xD117 mm
ERAA2-240Z-F and ERAA2-440Z-F: W46xH110xD117 mm
Weight
ERAA2-225Z and ERAA2-425Z: 475g (after packaging)
ERAA2-240Z-F and ERAA2-440Z-F: 500g (after packaging)
ERAA2-240Z-F and ERAA2-440Z-F: 500g (after packaging)
Enclosure Material
Self extinguishing plastics
