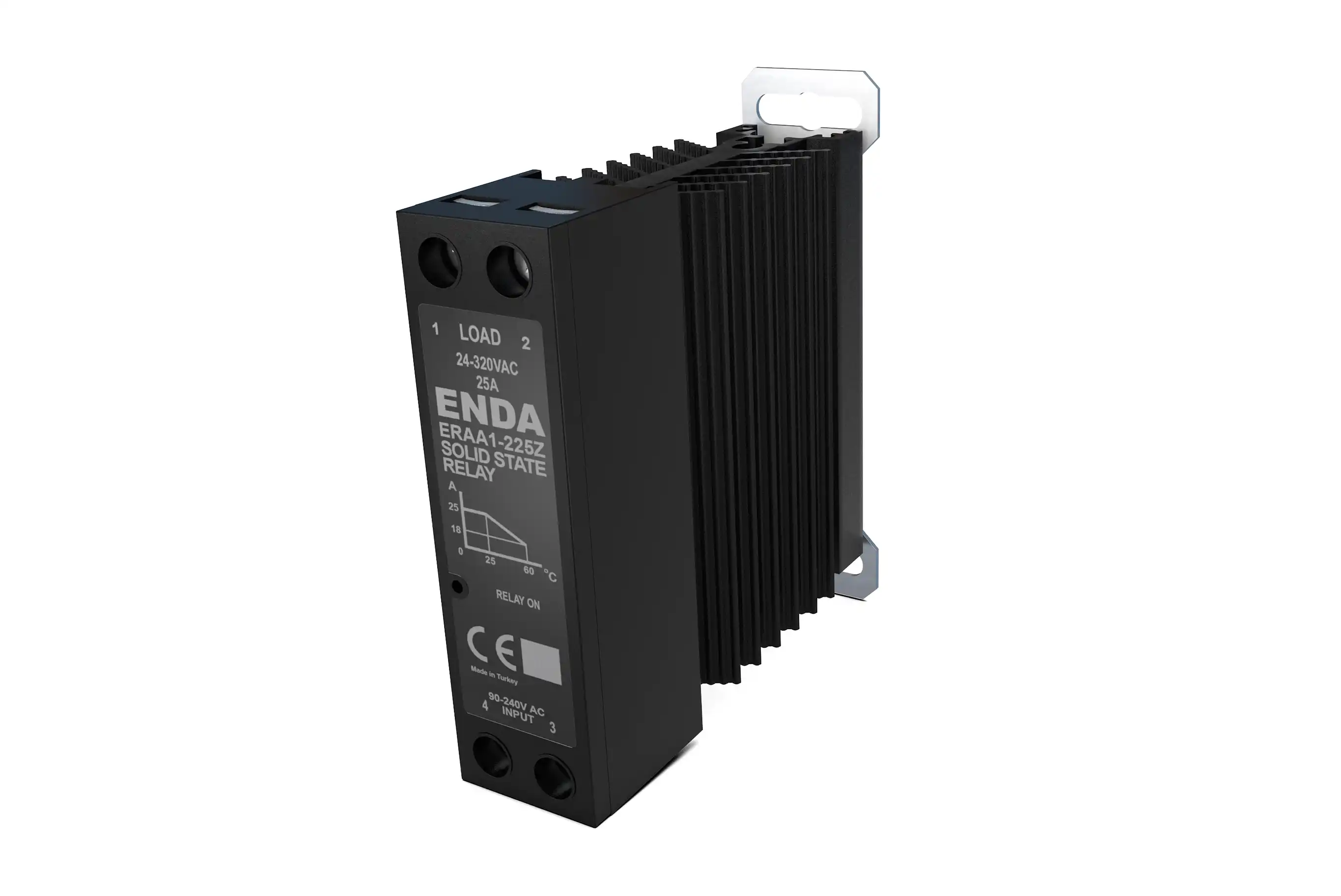

ERAA1
One Phase, 90-240V AC Input Voltage, 24-320V AC or 50-480V AC Load Voltage,
25 ve 40A AC load current
320V AC or 480V AC load voltage
90-240V AC input voltage
LED status indicator for input voltage
Zero-cross switching
Applicable for three phase loads
Built-in varistor protection
CE marked according to European Norms
Manuals
Environmental Conditions
Ambient/Storage Temperature
-25...60 ºC / -30...100 ºC
Relative Humidity
90% relative humidity for temperatures up to 20 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 IP20
Height
Max. 1000m
Housing
Mounting Method
TH35 rail mounting
Dimensions
ERAA1-225Z ve ERAA1-425Z: W24xH84xD97 mm
ERAA1-240Z ve ERAA1-440Z: W30xH84xD115 mm
ERAA1-240Z ve ERAA1-440Z: W30xH84xD115 mm
Weight
ERAA1-225Z and ERAA1-425Z: 203g (after packaging)
ERAA1-240Z and ERAA1-440Z: 280g (after packaging)
ERAA1-240Z and ERAA1-440Z: 280g (after packaging)
Enclosure Material
Self extinguishing plastics
Electrical Characteristics
Input Voltage
90-240V AC
Pick-up Voltage
>75V AC
Drop-out Voltage
˂6V AC
Input Current
˂8mA AC
Turn-on Time
Max. 1 Period
Turn-off Time
Max. 2 Period
LED Indicator
If the input voltage ˃75V AC then LED lits
Load Current (Arms)
ERAA1-225Z: 25
ERAA1-240Z: 40
ERAA1-425Z: 25
ERAA1-440Z: 40
ERAA1-240Z: 40
ERAA1-425Z: 25
ERAA1-440Z: 40
Load Voltage (Vrms)
ERAA1-225Z and ERAA1-240Z: 24-320
ERAA1-425Z and ERAA1-440Z: 50-480
ERAA1-425Z and ERAA1-440Z: 50-480
Frequency (Hz)
50-60
Environmental Conditions
Ambient/Storage Temperature
-25...60 ºC / -30...100 ºC
Relative Humidity
90% relative humidity for temperatures up to 20 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 IP20
Height
Max. 1000m
Electrical Characteristics
Input Voltage
90-240V AC
Pick-up Voltage
>75V AC
Drop-out Voltage
˂6V AC
Input Current
˂8mA AC
Turn-on Time
Max. 1 Period
Turn-off Time
Max. 2 Period
LED Indicator
If the input voltage ˃75V AC then LED lits
Load Current (Arms)
ERAA1-225Z: 25
ERAA1-240Z: 40
ERAA1-425Z: 25
ERAA1-440Z: 40
ERAA1-240Z: 40
ERAA1-425Z: 25
ERAA1-440Z: 40
Load Voltage (Vrms)
ERAA1-225Z and ERAA1-240Z: 24-320
ERAA1-425Z and ERAA1-440Z: 50-480
ERAA1-425Z and ERAA1-440Z: 50-480
Frequency (Hz)
50-60
Housing
Mounting Method
TH35 rail mounting
Dimensions
ERAA1-225Z ve ERAA1-425Z: W24xH84xD97 mm
ERAA1-240Z ve ERAA1-440Z: W30xH84xD115 mm
ERAA1-240Z ve ERAA1-440Z: W30xH84xD115 mm
Weight
ERAA1-225Z and ERAA1-425Z: 203g (after packaging)
ERAA1-240Z and ERAA1-440Z: 280g (after packaging)
ERAA1-240Z and ERAA1-440Z: 280g (after packaging)
Enclosure Material
Self extinguishing plastics
