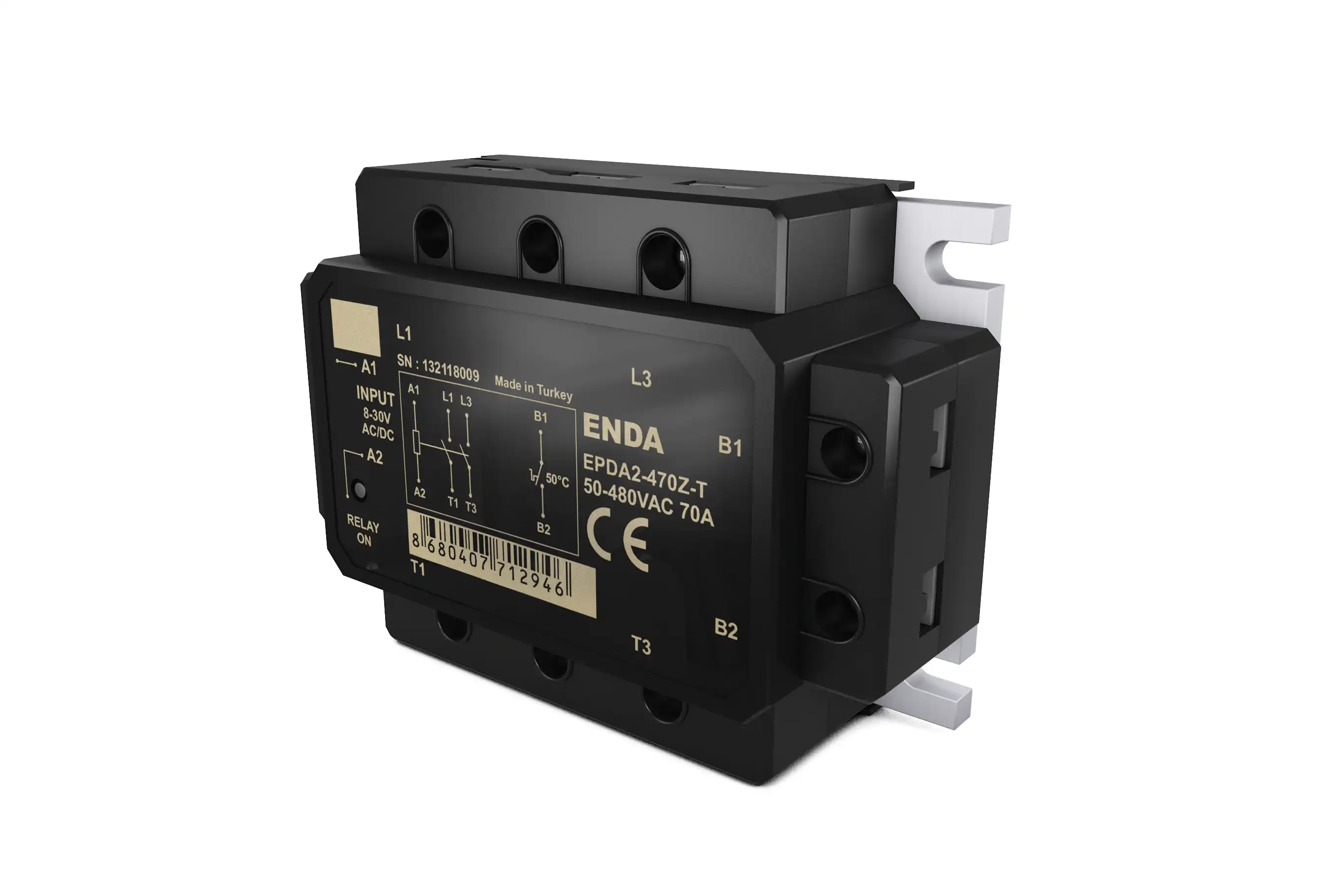

EPDA2
One Phase, 2 x Solid State Relay, 8-30V AC/DC Input Voltage, 50-480V AC Load Voltage,
2x25-2x40-2x70A AC load current
50-480V AC load voltage
8-30V AC/DC input voltage
LED status indicator for input voltage
Zero-cross switching
Applicable for three phase loads
Built-in varistor protection
Fan control thermostat (order option)
CE marked according to European Norms
Manuals
Environmental Conditions
Ambient/Storage Temperature
-25...60 ºC / -30...100 ºC
Relative Humidity
90% relative humidity for temperatures up to 20 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 IP20
Height
Max. 1000m
Housing
Mounting Method
M4 screws
Dimensions
W103xH74xD37 mm
Weight
275g (after packaging)
Enclosure Material
Self extinguishing plastics
Electrical Characteristics
Input Voltage
8-30V AC/DC
Pick-up Voltage
>6V AC/DC
Drop-out Voltage
˂2V AC/DC
Input Current
˂17mA AC/10mA DC
Turn-on Time
Max. ½ Period
Turn-off Time
Max. ½ Period
LED Indicator
If the input voltage ˃6V AC/DC then LED lit
Load Current(Arms)
EPDA2-425Z: 2x25
EPDA2-440Z: 2x40
EPDA2-470Z: 2x70
EPDA2-440Z: 2x40
EPDA2-470Z: 2x70
Load Voltage (Vrms)
50-480
Frequency (Hz)
50-60
Environmental Conditions
Ambient/Storage Temperature
-25...60 ºC / -30...100 ºC
Relative Humidity
90% relative humidity for temperatures up to 20 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 IP20
Height
Max. 1000m
Electrical Characteristics
Input Voltage
8-30V AC/DC
Pick-up Voltage
>6V AC/DC
Drop-out Voltage
˂2V AC/DC
Input Current
˂17mA AC/10mA DC
Turn-on Time
Max. ½ Period
Turn-off Time
Max. ½ Period
LED Indicator
If the input voltage ˃6V AC/DC then LED lit
Load Current(Arms)
EPDA2-425Z: 2x25
EPDA2-440Z: 2x40
EPDA2-470Z: 2x70
EPDA2-440Z: 2x40
EPDA2-470Z: 2x70
Load Voltage (Vrms)
50-480
Frequency (Hz)
50-60
Housing
Mounting Method
M4 screws
Dimensions
W103xH74xD37 mm
Weight
275g (after packaging)
Enclosure Material
Self extinguishing plastics
