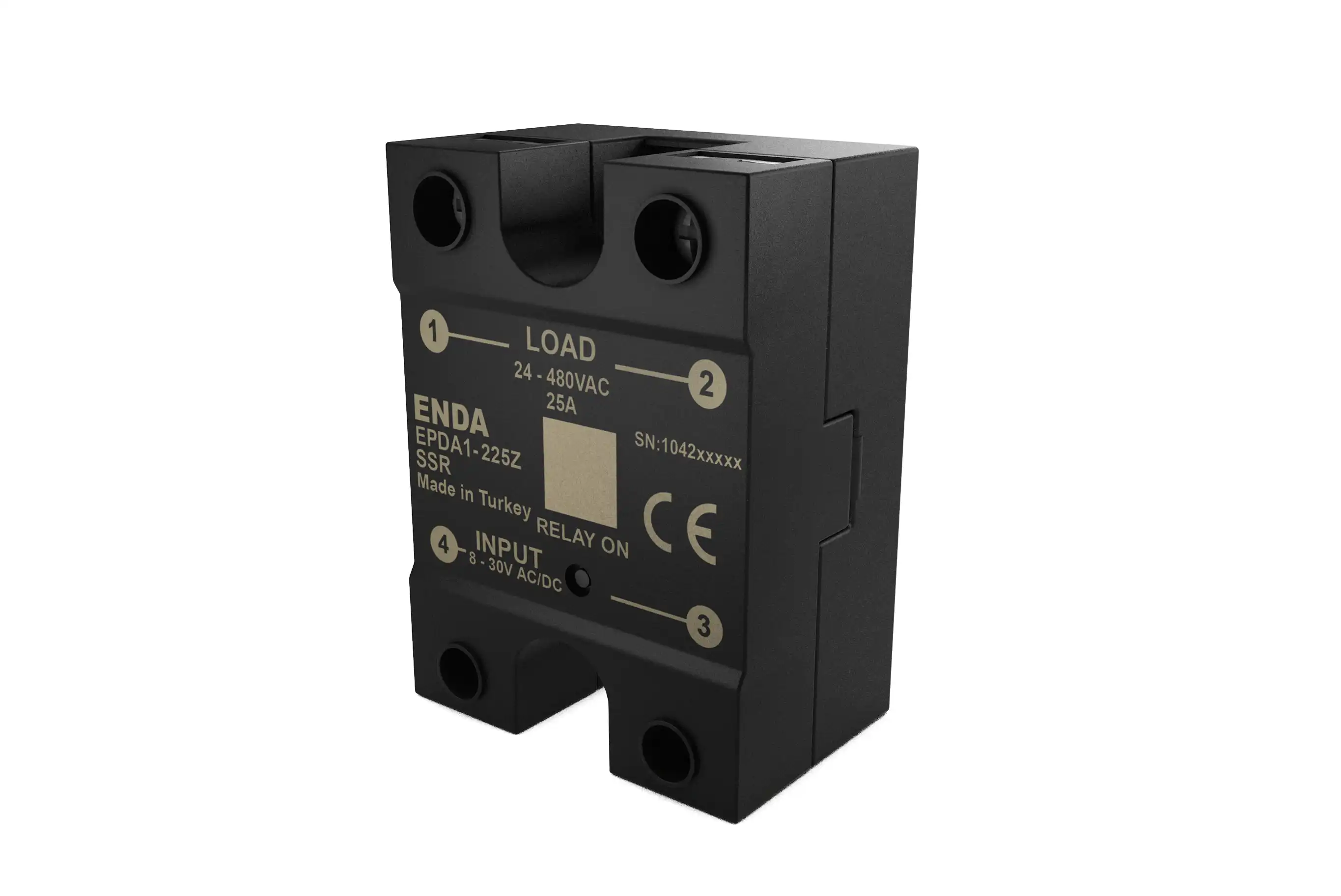

EPDA1
One Phase, 8-30V AC/DC Input Voltage, 24-320V AC or 50-480V AC Load Voltage, Zero/random-cross,
12A-25A-40A-50A-70A-100A-120A load current
320V AC or 480V AC load voltage
8-30V AC/DC input voltage
LED status indicator for input voltage
Zero/random-cross switching
Applicable for three phase loads
Built-in varistor protection
CE marked according to European Norms
Manuals
Environmental Conditions
Ambient/Storage Temperature
-25...60 ºC / -30...100 ºC
Relative Humidity
90% relative humidity for temperatures up to 20 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 IP20
Height
Max. 1000m
Housing
Mounting Method
M4 screws
Dimensions
W45xH62xD31 mm
Weight
EPDA1-2xx/4xxX 95g (after packaging)
EPDA1-450/470X 110g (after packaging)
EPDA1-4100/4120X 115g (after packaging)
EPDA1-450/470X 110g (after packaging)
EPDA1-4100/4120X 115g (after packaging)
Enclosure Material
Self extinguishing plastics
Electrical Characteristics
Input Voltage
8-30V AC/DC
Pick-up Voltage
>6V AC/DC
Drop-out Voltage
˂2V AC/DC
Input Current
˂17mA AC/10mA DC
Turn-on Time
Max. ½ Period
Turn-off Time
Max. ½ Period
LED Indicator
If the input voltage ˃6V AC/DC then LED lit
Load Current(Arms)
EPDA1-212X: 12
EPDA1-225X: 25
EPDA1-240X: 40
EPDA1-425X: 25
EPDA1-440X: 40
EPDA1-450X: 50
EPDA1-470X: 70
EPDA1-4100X: 100
EPDA1-4120X: 120
EPDA1-225X: 25
EPDA1-240X: 40
EPDA1-425X: 25
EPDA1-440X: 40
EPDA1-450X: 50
EPDA1-470X: 70
EPDA1-4100X: 100
EPDA1-4120X: 120
Load Voltage (Vrms)
EPDA1-212X, EPDA1-225X and EPDA1-240X: 24-320
EPDA1-425X, EPDA1-440X, EPDA1-450X, EPDA1-470X, EPDA1-4100X and EPDA1-4120Z: 50-480
EPDA1-425X, EPDA1-440X, EPDA1-450X, EPDA1-470X, EPDA1-4100X and EPDA1-4120Z: 50-480
Frequency (Hz)
50-60
Environmental Conditions
Ambient/Storage Temperature
-25...60 ºC / -30...100 ºC
Relative Humidity
90% relative humidity for temperatures up to 20 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 IP20
Height
Max. 1000m
Electrical Characteristics
Input Voltage
8-30V AC/DC
Pick-up Voltage
>6V AC/DC
Drop-out Voltage
˂2V AC/DC
Input Current
˂17mA AC/10mA DC
Turn-on Time
Max. ½ Period
Turn-off Time
Max. ½ Period
LED Indicator
If the input voltage ˃6V AC/DC then LED lit
Load Current(Arms)
EPDA1-212X: 12
EPDA1-225X: 25
EPDA1-240X: 40
EPDA1-425X: 25
EPDA1-440X: 40
EPDA1-450X: 50
EPDA1-470X: 70
EPDA1-4100X: 100
EPDA1-4120X: 120
EPDA1-225X: 25
EPDA1-240X: 40
EPDA1-425X: 25
EPDA1-440X: 40
EPDA1-450X: 50
EPDA1-470X: 70
EPDA1-4100X: 100
EPDA1-4120X: 120
Load Voltage (Vrms)
EPDA1-212X, EPDA1-225X and EPDA1-240X: 24-320
EPDA1-425X, EPDA1-440X, EPDA1-450X, EPDA1-470X, EPDA1-4100X and EPDA1-4120Z: 50-480
EPDA1-425X, EPDA1-440X, EPDA1-450X, EPDA1-470X, EPDA1-4100X and EPDA1-4120Z: 50-480
Frequency (Hz)
50-60
Housing
Mounting Method
M4 screws
Dimensions
W45xH62xD31 mm
Weight
EPDA1-2xx/4xxX 95g (after packaging)
EPDA1-450/470X 110g (after packaging)
EPDA1-4100/4120X 115g (after packaging)
EPDA1-450/470X 110g (after packaging)
EPDA1-4100/4120X 115g (after packaging)
Enclosure Material
Self extinguishing plastics
