ENDV Range

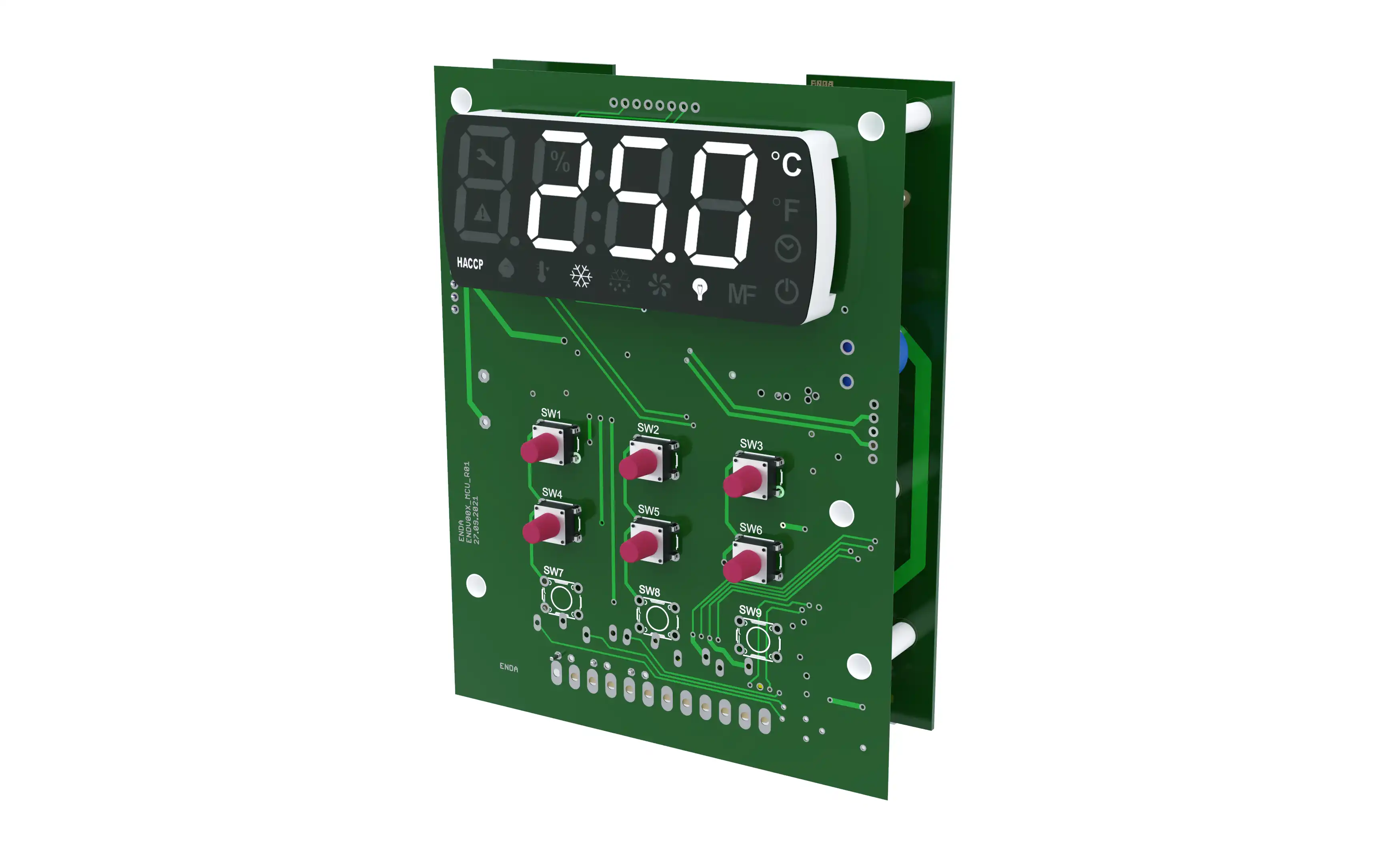

80x99 mm PCB, 3 NTC Inputs, Maximum 5 Relay Outputs, Defrost Controller

Compare
ENDV Range Enda Product
Compare

  • Sold as PCB board

  • On-Off cooling control

  • Relay Outputs for Cooling, Fan, AUX, Defrost

  • AUX Output can be set to Alarm or Lighting

  • 3 NTC Probe inputs for Cell ,Evaporator and Condenser

  • Digital Input (Door Switch)

  • Multifunction digital input

  • Offset value can be entered for NTC input

  • Compressor protection parameters can be entered

  • In case of probe failure, output status can be set to On, Off or periodic

  • Manuel fast cooling feature

  • Manuel or depending on Time and Evaporator defrost feature

  • Defrost duration and intervals can be set

  • Upper and Lower set point limits can be set

  • Real Time Clock feature (optional)

  • Temperature unit can be displayed as °F or °C

  • RS-485 ModBus RTU communication feature (optional)

  • Up to 9 HACCP alarm record can be stored

  • CE marked according to European Norms

Manuals

Downloads

Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC
Relative Humidity
80% relative humidity for temperatures up to 31°C, decreasing linearly to 50% at 40°C
Protection Degree
According to EN 60529
Height
Max. 2000m
Output
Compressor Relay Output
8A model: 277V AC, 20A (for resistive load), NO
2hp 250V AC (for inductive load)

Defrost Relay Output
Unavailable for model END003
8A model: 250V AC, 8A (for resistive load), NO/NC
1/2hp 240V AC (for inductive load)

Fan Relay Output
8A model: 250V AC, 8A (for resistive load), NO
1/2hp 240V AC (for inductive load)

AUX Relay Output
8A model: 250V AC, 8A (for resistive load), NO/NC
1/2hp 240V AC (for inductive load)

Life Expectancy
Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (8A at 250V AC, resistive load)
Mechanical 10.000.000 operations (under no load), Electrical 100.000 operations (20A at 277V AC, resistive load)

Electrical Characteristics
Supply
230V AC +10% -20% 50/60Hz
Power Consumption
Max. 2VA
External Connections
Plug-in terminals
Scale
-60.0...150.0 °C
Sensitivity
0.1 °C (Can be chosen as 0.1 ºC or 1 ºC)
Accuracy
±1 °C (of full scale)
Time accuracy
±1%
Control
Control Type
Set point Control, Compressor with digital Input, Defrost, Output Control Of Fan
Control Algorithm
On-Off
Hysteresis
Adjustable between 1 and 20.0 °C
Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC
Relative Humidity
80% relative humidity for temperatures up to 31°C, decreasing linearly to 50% at 40°C
Protection Degree
According to EN 60529
Height
Max. 2000m
Electrical Characteristics
Supply
230V AC +10% -20% 50/60Hz
Power Consumption
Max. 2VA
External Connections
Plug-in terminals
Scale
-60.0...150.0 °C
Sensitivity
0.1 °C (Can be chosen as 0.1 ºC or 1 ºC)
Accuracy
±1 °C (of full scale)
Time accuracy
±1%
Output
Compressor Relay Output
8A model: 277V AC, 20A (for resistive load), NO
2hp 250V AC (for inductive load)

Defrost Relay Output
Unavailable for model END003
8A model: 250V AC, 8A (for resistive load), NO/NC
1/2hp 240V AC (for inductive load)

Fan Relay Output
8A model: 250V AC, 8A (for resistive load), NO
1/2hp 240V AC (for inductive load)

AUX Relay Output
8A model: 250V AC, 8A (for resistive load), NO/NC
1/2hp 240V AC (for inductive load)

Life Expectancy
Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (8A at 250V AC, resistive load)
Mechanical 10.000.000 operations (under no load), Electrical 100.000 operations (20A at 277V AC, resistive load)

Control
Control Type
Set point Control, Compressor with digital Input, Defrost, Output Control Of Fan
Control Algorithm
On-Off
Hysteresis
Adjustable between 1 and 20.0 °C
