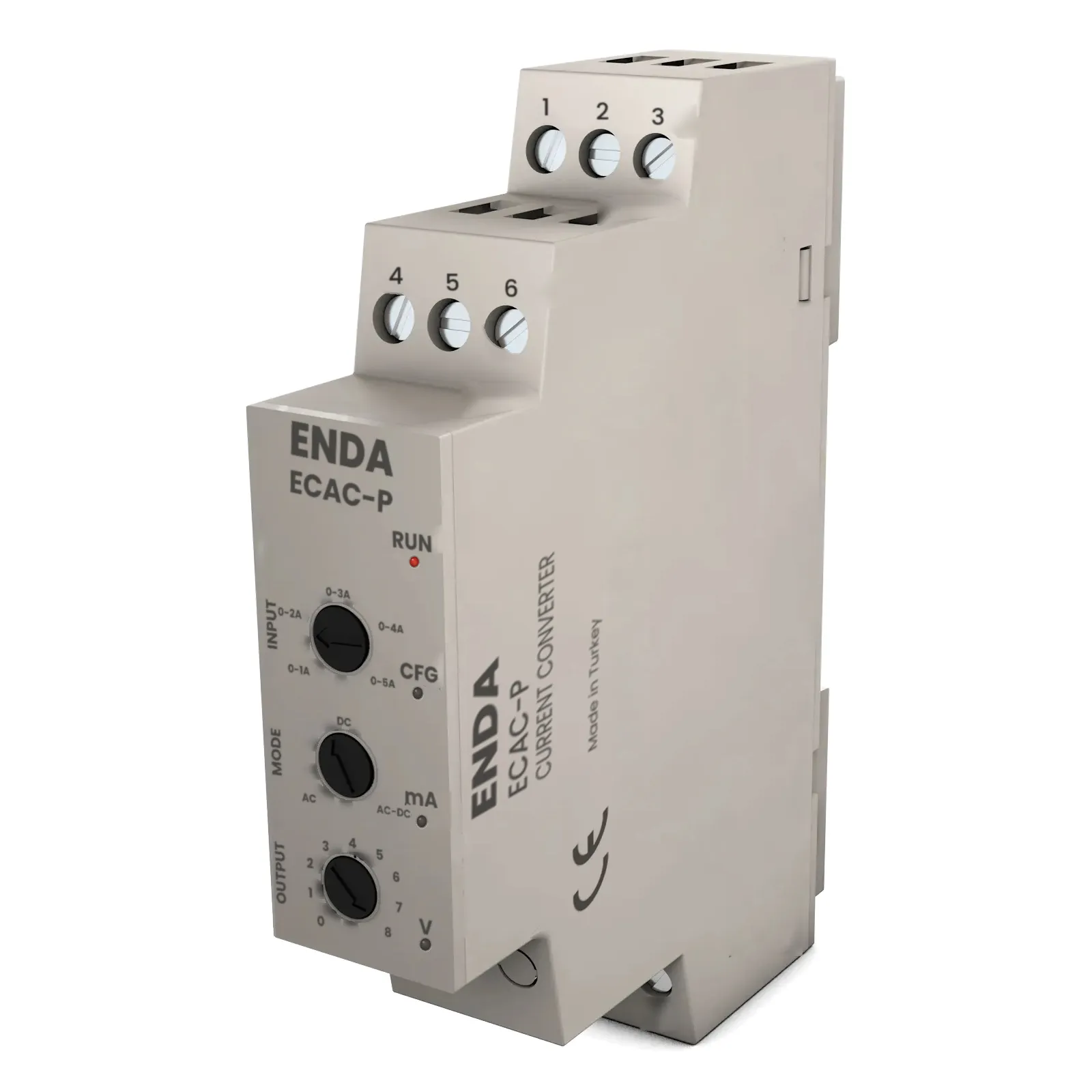

ECAC-P
18.5x90 mm, Rail Mounted, 0-5A AC/DC Input, Analog Output Current Converter
Current input: 0…1A, 0…2A, 0…3A, 0…4A, 0…5A
Selectable AC, DC, AC-DC measurement method
Current output: 0…20mA, 20…0mA, 4…20mA, 20…4mA
Voltage output: 0…5V, 5…0V, 0…10V, 10…0V, -5…+5V
3-way isolation: input, output, power supply
All settings via front-panel potentiometers
Rail-mountable enclosure
CE certified according to EN standards
Manuals
Electrical Specifications
Supply Voltage
24VDC (±5%)
Power Consumption
Maximum 6W
Isolation
1.5 kVrms between input, output and power supply
Wiring
1.5mm² terminal
Data Retention
FLASH memory (min 20 years)
EMC
EN 61326-1: 2021 (Performance criterion B for EN 61000-4-3 standard is met)
Safety Requirements
EN 61010-1: 2010 (Pollution degree 2, overvoltage category II)
Inputs
Current Input
0…1A, 0…2A, 0…3A, 0…4A or 0…5A AC/DC, selected with the INPUT potentiometer
Measurement Method
AC, DC or AC-DC, selected with the MODE potentiometer
Input Accuracy
± 0.5% (full scale)
Housing
Mounting Style
Mountable on rail (according to DIN 43 700)
Dimensions
W18.5xH90xD66 mm
Weight
Approx. 120g (with packaging)
Housing Material
Self-extinguishing plastics used
Environmental Specifications
Ambient/Storage Temperature
0…+50°C / -25…+70°C (without icing)
Relative Humidity
Up to 31°C 80%, then linearly decreasing to 50% at 40°C
Protection Rating
IP20 according to EN 60529
Operational Height
Max. 2000m
Outputs
Analog Output (mA)
0…20mA / 20…0mA / 4…20mA / 20…4mA DC, load resistance max 300ohm
Analog Output (V)
0…5V / 5…0V / 0…10V / 10…0V / -5…+5V, max 10mA (short-circuit protection)
Output Accuracy
± 0.2% (full scale)
